Model: 6 digital adjustable silicon box LS-K009
Series: Stage light console
Scan Website QR code
Learn more by cell phone
力盛舞台灯光
Parameters
Demonstration
Video

The main technical parameters:

(1) Power supply: three-phase five-wire AC380V (220V voltage can be connected, you can also access 380V voltage)

(2) Signal Interface: Digital Dual DMX-512 (1990).

(3) Rated power: 6 × 6KW, the maximum output power of each circuit can reach 7kW.

(4) Dimensions (mm): L515 × W485 × H133

    Machine weight: 18KG.


product manual:

1. The core silicon device SCR chip imported from Germany original products, stable and reliable performance.

2. Good cooling device and forced air cooling and intelligent environmental control system combined.

3. Efficient anti-interference chokes strong anti-interference ability, low noise, current rise time 220us-450us.

4. Each output 6kW, a total of 6 Road, the initial circuit settings, you can see the brightness of each road;

5. DMX512 signal can be set to maintain or not maintain working condition. In the holding state, dimming console DMX signal interruption, will maintain the last one data, will not dark field;

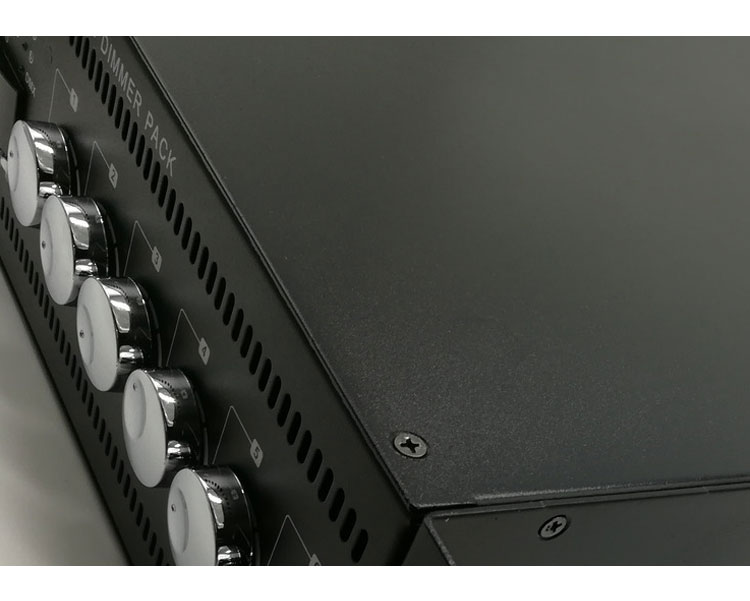

6. 6-way knob dimming; each dimming curve can be set to linear or switch state, the switch &#118alue is 50%, the switch state input brightness greater than or equal to 50% of the corresponding loop full output, otherwise no output;

7. Overload and short circuit double protection high breaking air switch

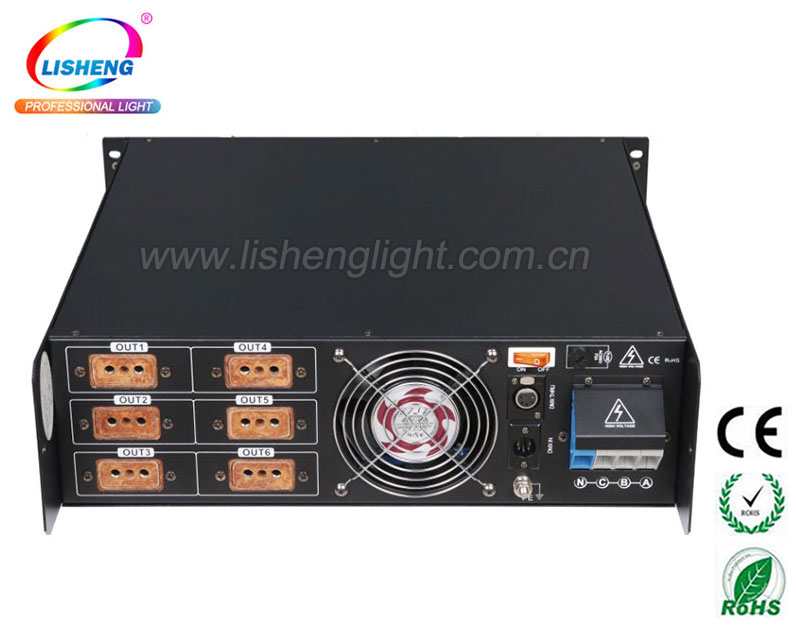

8. Output can do 10A bakelite plug 40A bakelite plug 19-pin plug
